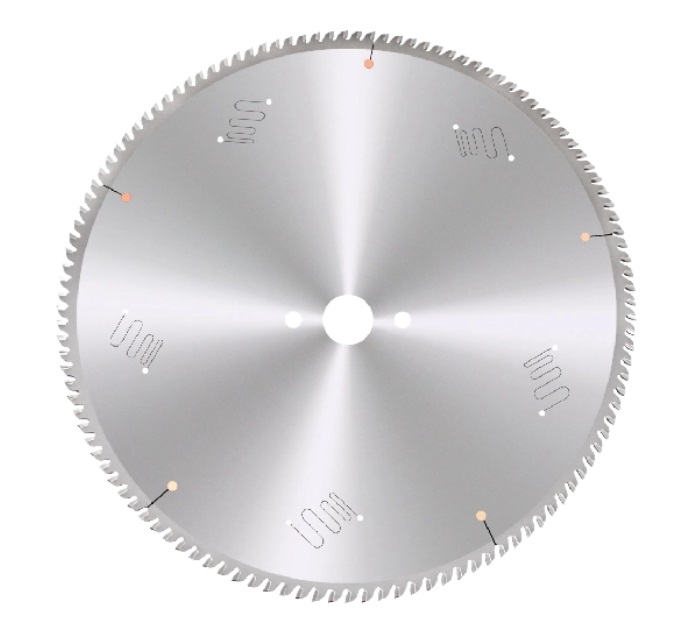

TCT Aluminum Saw Blade
Product Features
Silence slot effectively reduce the noise.TP teeth design brings smooth cutting surface ,free of burrs and long life.
Application Scope

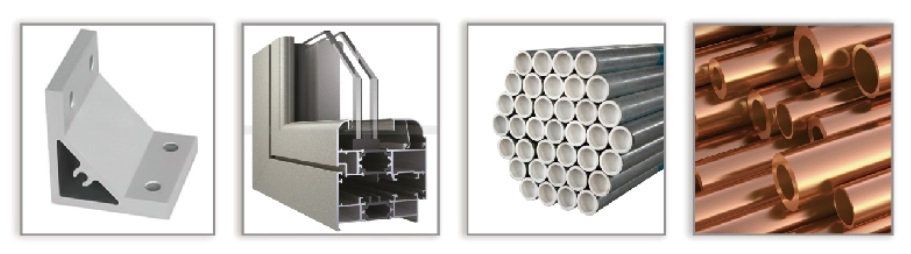

Can be used for cutting plastic steel , aluminum profile, aluminum radiator , door， window, curtain wall ,cooper alloy and other no-ferrous material, etc.
Applicable Equipment
Auto pannel saw, double head mitre saw, manual cut-off saw and other CNC machine etc.
Product Overview
This industrial silent TCT aluminum saw blade is equipped with built-in silent slots and TP tooth structure, specially designed for cutting aluminum profile, aluminum radiator, plastic steel, door & window frames, curtain wall materials and copper alloy non-ferrous metals. The silent slot design effectively reduces cutting noise during mass production, while TP tooth delivers burr-free ultra-smooth cutting surface. Adopting high wear-resistant tungsten carbide tips, this aluminum cutting blade features long service life and stable cutting performance. It is widely applied in aluminum window and door processing factories, curtain wall manufacturing workshops and non-ferrous metal processing plants. We provide wholesale TCT aluminum saw blades with customizable diameter, inner hole and tooth count for various cutting machinery.
Additional Features
Built-in mute silent slots, greatly lower vibration and cutting noise for factory continuous production
Professional TP tooth design, produces clean burr-free cut on aluminum and plastic steel workpieces
High-hardness tungsten carbide cutting tips, outstanding wear resistance and extended service life
Wide material compatibility: aluminum profile, aluminum radiator, plastic steel, copper alloy, curtain wall materials
Balanced base plate, stable running without deformation during long-time aluminum cutting
Customizable outer diameter, bore size and tooth quantity to match all aluminum cutting equipment
Professional TP tooth design, produces clean burr-free cut on aluminum and plastic steel workpieces
High-hardness tungsten carbide cutting tips, outstanding wear resistance and extended service life
Wide material compatibility: aluminum profile, aluminum radiator, plastic steel, copper alloy, curtain wall materials
Balanced base plate, stable running without deformation during long-time aluminum cutting
Customizable outer diameter, bore size and tooth quantity to match all aluminum cutting equipment
Product Specification
GET QUOTE| Model No. | Outer Diameter (mm) | Inner Hole (mm) | Wall Thickness (mm) | Diamond Segments |
|---|---|---|---|---|
| BD-SBT0601 | 255 | 25.4 | 3.0 | 120 |
| BD-SBT0602 | 305 | 25.4 | 3.0 | 120 |
| BD-SBT0603 | 355 | 25.4 | 3.2 | 120 |
| BD-SBT0604 | 405 | 30 | 4.0 | 120 |
| BD-SBT0605 | 450 | 30 | 4.0 | 96/120 |
| BD-SBT0606 | 500 | 30 | 4.4 | 96/120 |
| BD-SBT0607 | 550 | 30 | 4.8 | 120/144 |
| BD-SBT0608 | 600 | 30 | 4.8 | 120/144 |
