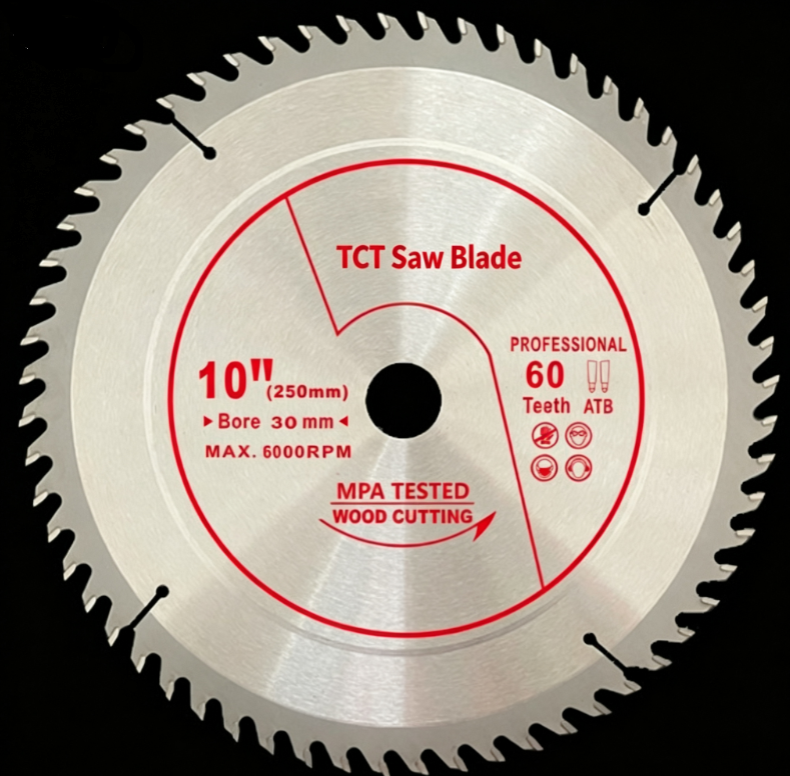

TCT Saw Blade for Power Tools Wood_cutting AM_Serial
Product Features
ATB-Type TCT wood cutting saw blade 110-400mm, 20mm/25.4mm/30mm bore, MPA-certified, multiple teeth options for solid wood and panel cutting.
Application Scope
solid wood, plywood, wood‑based panels
Applicable Equipment
Handheld & table circular saw.
Product Overview
Professional TCT saw blade for Southeast Asia market, 4‑16 inch, various bore & teeth options, stable cutting for wood working, fits handheld & table circular saw.
Multiple bore sizes: 20mm, 25.4mm, 30mm, matching most popular local circular saw machines.
Rich teeth configurations from 20T-120T satisfy rough ripping, cross-cutting and fine finishing work.
Stable kerf, low vibration, long service life for solid wood, plywood and composite wood materials.
Multiple bore sizes: 20mm, 25.4mm, 30mm, matching most popular local circular saw machines.
Rich teeth configurations from 20T-120T satisfy rough ripping, cross-cutting and fine finishing work.
Stable kerf, low vibration, long service life for solid wood, plywood and composite wood materials.
Additional Features
Diameter: 4"‑16" (110mm‑400mm)
Bore: 20 mm / 25.4 mm / 30 mm
Kerf:1.6‑3.4 mm
Teeth:20‑120T, multiple options
MPA-tested for safety. Suitable for hand-held circular saw and table saw, widely used in carpentry workshop and on-site constuction across ASEAN countries.
Bore: 20 mm / 25.4 mm / 30 mm
Kerf:1.6‑3.4 mm
Teeth:20‑120T, multiple options
MPA-tested for safety. Suitable for hand-held circular saw and table saw, widely used in carpentry workshop and on-site constuction across ASEAN countries.
Product Specification
GET QUOTEMultiple bore diameter and tooth count options available to match your cutting machine.
| Model No. | Outer Diameter (mm) | Inner Hole (mm) | Body / Tip Thickness (mm) | Number of Teeth |
|---|---|---|---|---|
| BD-GW-1004 | 4"(110mm) | 20 | 1.6 | 24/30/40 |
| BD-GW-1005 | 5"(125mm) | 20 | 1.8 | 30/40 |
| BD-GW-1006 | 6"(150mm) | 25.4 | 2.2 | 40/60 |
| BD-GW-1007 | 6"(160mm) | 20 | 2.2 | 20/40/60 |
| BD-GW-1008 | 7"(184mm) | 20 | 1.8 | 20 |
| BD-GW-1009 | 7"(184mm) | 25.4 | 1.8 | 24/30/40/60/80 |
| BD-GW-1010 | 7"(180mm) | 25.4 | 2.2 | 40/60 |
| BD-GW-1011 | 8"(230mm) | 25.4 | 2.4 | 20/24/30/40/60/80 |
| BD-GW-1012 | 9"(230mm) | 25.4 | 2.4 | 24/30/40/60/80 |
| BD-GW-1013 | 10"(250mm) | 30 | 2.6 | 24/30/40/60/80 |
| BD-GW-1014 | 10"(255mm) | 30 | 3.0 | 100/120 |
| BD-GW-1015 | 10"(250mm) | 30 | 3.2 | 40/60 |
| BD-GW-1016 | 12"(300mm) | 30 | 3.2 | 24/30/40/60/80/100/120 |
| BD-GW-1017 | 14"(350mm) | 30 | 3.4 | 24/30/32/40/60/80/100/120 |
| BD-GW-1018 | 16"(400mm) | 30 | 3.4 | 24/30/40/60/80/100/120 |
