Lâmina de ranuragem cónica ajustável TCT

Características do Produto

Excelente desempenho de corte sem lascas, durável e preciso. A largura de corte é ajustável regulando o eixo principal.

Área de Aplicação

Apto para cortar y ranurar paneles laminados (con recubrimiento de papel o plástico), materiales ignífugos y otros.

Equipamentos Compatíveis

Serra de bancada de precisão, serra dimensionadora de painéis, serra horizontal para painéis

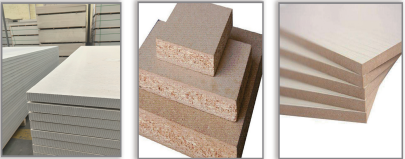

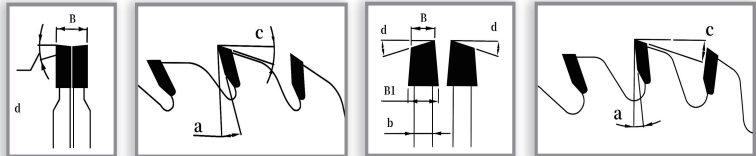

Diagramas e Amostras de Corte

Lâmina de ranuragem cónica ajustável TCT diagrama amostra de corte

Visão Geral do Produto

This industrial TCT conical adjustable scoring saw blade adopts conical tooth structure and durable tungsten carbide cutting segments, specially designed for pre-scoring laminated panels with paper or plastic veneer and fireproof board materials. The adjustable spindle structure allows flexible cutting width adjustment, delivering precise, chip-free pre-scoring effect to prevent veneer chipping during subsequent panel sizing cutting. This TCT scoring blade perfectly matches precision table saw, panel sizing saw and horizontal panel saw, widely applied in cabinet manufacturing workshops, fireproof board processing factories and wood panel production lines. We supply wholesale adjustable conical TCT scoring saw blades with customizable diameter, inner hole and tooth quantity to fit various wood panel cutting equipment.

Características Adicionais

Professional conical tooth geometry, produces clean chipping-free pre-scoring on veneered laminated panels
Adjustable spindle design, freely change scoring width to match different panel thickness specifications
High-hardness tungsten carbide segments, durable wear resistance for continuous mass panel pre-scoring work
Effective protection for laminated veneer surface, avoids peeling and edge damage during panel sizing
Full compatibility with precision table saw, panel sizing saw and horizontal panel saw machinery
Customizable outer diameter, bore size and tooth count to satisfy diverse wood panel processing demands

Especificações do Produto

Solicitar Orçamento

Disponíveis vários diâmetros e números de dentes para sua máquina de corte.

Modelo	Diâmetro Externo (mm)	Furo Interno (mm)	Espessura (mm)	Nº Dentes
BD-SBT0301	120	20/22	3.0-4.0	24
BD-SBT0302	125	22	3.4-4.4	24
BD-SBT0303	160	25.4/30	3.4-4.4	36
BD-SBT0304	160	55	3.1-4.1/3.9-4.9	36
BD-SBT0305	160	45	4.3-5.3	36
BD-SBT0306	180	30	3.4-4.4/3.9-4.9	36
BD-SBT0307	180	30/45	4.3-5.3	36
BD-SBT0308	180	45	4.7-5.7	36
BD-SBT0308	200	45/50/75	4.3-5.3	36
BD-SBT0310	200	50	4.7-5.7	36
