Lâmina de ranuragem cónica ajustável PCD

Características do Produto

O substrato de alta qualidade e as pontas de PCD garantem uma durabilidade 30 vezes maior que as lâminas de serra TCT. A largura de ranhura é ajustável.

Área de Aplicação

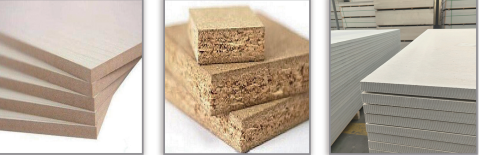

MDF, painel de partículas, compensado com revestimento laminado

Equipamentos Compatíveis

Serra de bancada, serra deslizante de precisão, serra dimensionadora de painéis, entre outros.

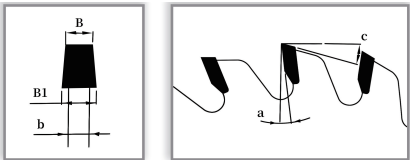

Diagramas e Amostras de Corte

Lâmina de ranuragem cónica ajustável PCD diagrama amostra de corte

Visão Geral do Produto

This industrial PCD conical adjustable scoring saw blade adopts high-rigidity steel substrate and premium polycrystalline diamond cutting tips, with service life up to 30 times longer than ordinary TCT scoring blades. It features adjustable scoring width design, specially developed for pre-scoring MDF, chipboard and veneered plywood to prevent surface veneer chipping during panel sizing. This conical PCD scoring cutter perfectly matches table saw, precision sliding table saw and panel sizing saw equipment, widely deployed in cabinet manufacturing, wood panel processing and furniture production factories. We supply wholesale adjustable PCD scoring saw blades with customizable diameter, inner hole and tooth specifications for all wood panel cutting production lines.

Características Adicionais

Conical tooth structure with adjustable scoring width, flexible to match different panel thickness processing demands
High-hardness PCD diamond segments, 30 times longer service life than standard TCT scoring saw blades
Pre-scoring function effectively avoids veneer peeling and edge chipping on laminated plywood workpieces
Balanced thick steel base plate, low vibration and stable running during continuous panel cutting
Compatible with table saw, precision sliding table saw and industrial panel sizing saw machines
Customizable outer diameter, bore size and tooth quantity to fit various woodworking panel cutting equipment

Especificações do Produto

Solicitar Orçamento

Disponíveis vários diâmetros e números de dentes para sua máquina de corte.

Modelo	Diâmetro Externo (mm)	Furo Interno (mm)	Espessura (mm)	Nº Dentes
BD-SB0701	120	20/22	3.0-4.0	24
BD-SB0702	125	22	3.4-4.4	24
BD-SB0703	160	25.4/30	3.4-4.4	36
BD-SB0704	160	55	3,.1-4.1/3.9-4.9	36
BD-SB0705	160	45	4.3-5.3	36
BD-SB0706	180	30	3.4-4.4/3.9-4.9	36
BD-SB0707	180	30/45	4.3-5.3	36
BD-SB0708	180	45	4.7-5.7	36
BD-SB0709	200	45/50/75	4.3-5.3	36
BD-SB0710	200	50	4.7-5.7	36
