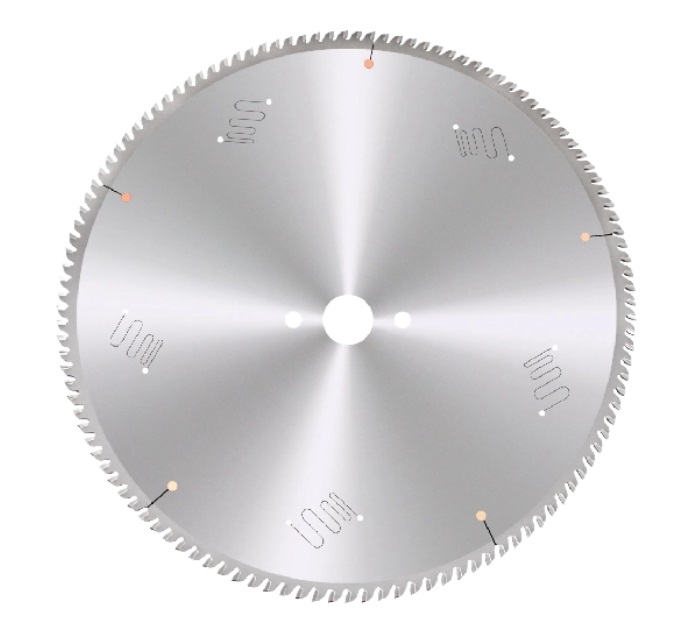

TCT Aluminum Saw Blade
Product Features
- Silent slots effectively reduce cutting noise. TP tooth design delivers a smooth cutting surface, burr-free finish and long service life.
- Equipped with high wear-resistant tungsten carbide tips, this aluminum cutting saw blade offers long service life and stable cutting performance.
Application Scope
Suitable for cutting plastic steel, aluminum profiles, aluminum radiators, doors, windows, curtain walls, copper alloys and other non-ferrous materials.
Applicable Equipment
Auto panel saw, double head mitre saw, manual cut-off saw and other CNC machines.

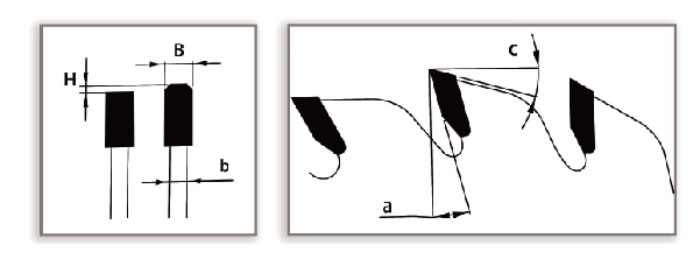

Tooth Diagram

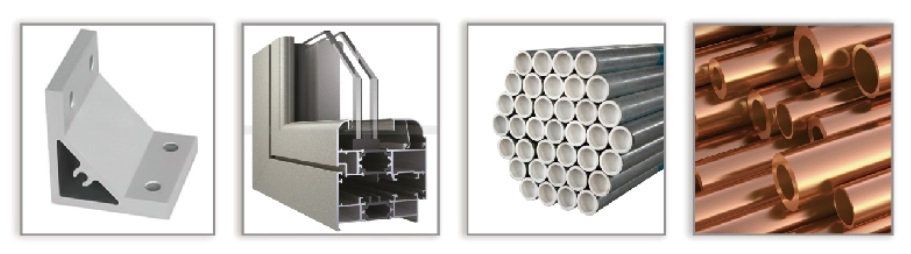

Cutting Sample
Product Overview
- Silent TCT aluminum saw blade with silent slots & TP teeth makes smooth burr-free cuts for aluminum profiles.
- The silent slot design effectively reduces cutting noise during mass production, while TP tooth delivers burr-free ultra-smooth cutting surface.
- Adopting high wear-resistant tungsten carbide tips, this aluminum cutting blade features long service life and stable cutting performance.
- We provide wholesale TCT aluminum saw blades with customizable diameter, inner hole and tooth count for various cutting machinery.
Additional Features
- Outer diameter optional from 255mm to 600mm to match different production requirements.
- Inner bore available in 25.4mm and 30mm for different machine spindles; body / tip thickness ranges from 3.0mm to 4.8mm for various cutting loads.
- Tooth count optional: 96, 120, 144 teeth to get fine cutting finish.
Product Specification
GET QUOTEMultiple bore diameter and tooth count options available to match your cutting machine.
| Model No. | Outer Diameter | Arbor Bore | Body / Tip Thickness | Teeth Number |
|---|---|---|---|---|
| BD-SBT0601 | 255 | 25.4 | 3.0 | 120 |
| BD-SBT0602 | 305 | 25.4 | 3.0 | 120 |
| BD-SBT0603 | 355 | 25.4 | 3.2 | 120 |
| BD-SBT0604 | 405 | 30 | 4.0 | 120 |
| BD-SBT0605 | 450 | 30 | 4.0 | 96/120 |
| BD-SBT0606 | 500 | 30 | 4.4 | 96/120 |
| BD-SBT0607 | 550 | 30 | 4.8 | 120/144 |
| BD-SBT0608 | 600 | 30 | 4.8 | 120/144 |

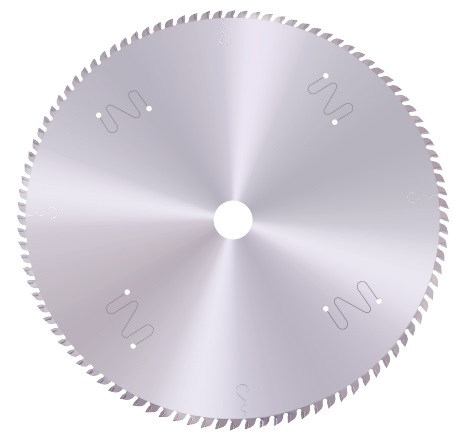

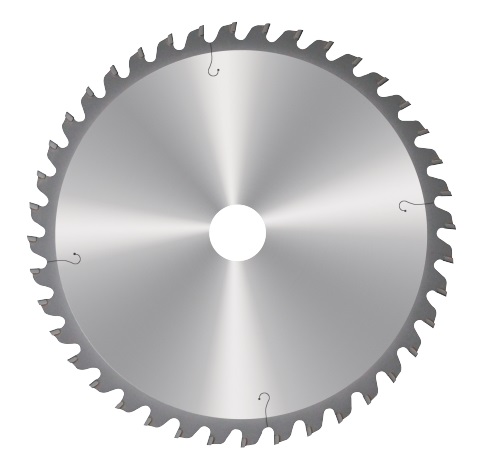

Related Saw Blades
