Lâmina TCT para alumínio
Características do Produto
Ranhuras silenciosas reduzem o ruído de forma eficaz. O design de dentes TP proporciona superfícies de corte suaves, sem rebarbas e longa durabilidade.
Área de Aplicação

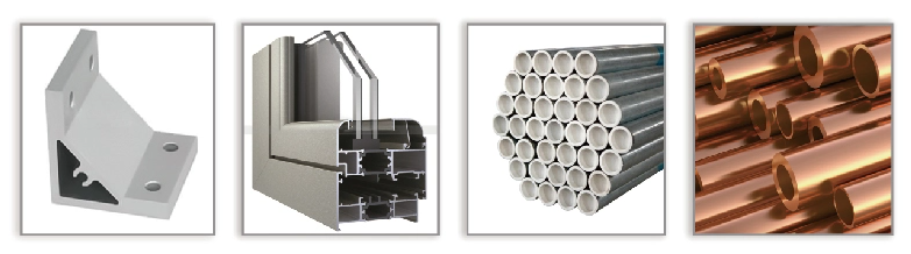

Indicado para corte de aço plástico, perfis de alumínio, radiadores de alumínio, portas, janelas, paredes cortina, liga de cobre e outros materiais não ferrosos, entre outros.
Equipamentos Compatíveis
Serra automática para painéis, serra de esquadria de duplo cabeçote, serra de corte manual e outras máquinas CNC, entre outros.

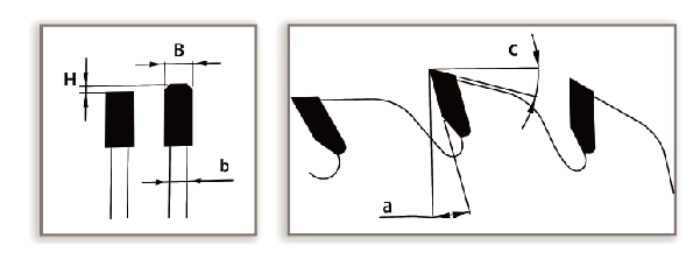

Diagramas e Amostras de Corte
Visão Geral do Produto
This industrial silent TCT aluminum saw blade is equipped with built-in silent slots and TP tooth structure, specially designed for cutting aluminum profile, aluminum radiator, plastic steel, door & window frames, curtain wall materials and copper alloy non-ferrous metals. The silent slot design effectively reduces cutting noise during mass production, while TP tooth delivers burr-free ultra-smooth cutting surface. Adopting high wear-resistant tungsten carbide tips, this aluminum cutting blade features long service life and stable cutting performance. It is widely applied in aluminum window and door processing factories, curtain wall manufacturing workshops and non-ferrous metal processing plants. We provide wholesale TCT aluminum saw blades with customizable diameter, inner hole and tooth count for various cutting machinery.
Características Adicionais
Built-in mute silent slots, greatly lower vibration and cutting noise for factory continuous production
Professional TP tooth design, produces clean burr-free cut on aluminum and plastic steel workpieces
High-hardness tungsten carbide cutting tips, outstanding wear resistance and extended service life
Wide material compatibility: aluminum profile, aluminum radiator, plastic steel, copper alloy, curtain wall materials
Balanced base plate, stable running without deformation during long-time aluminum cutting
Customizable outer diameter, bore size and tooth quantity to match all aluminum cutting equipment
Professional TP tooth design, produces clean burr-free cut on aluminum and plastic steel workpieces
High-hardness tungsten carbide cutting tips, outstanding wear resistance and extended service life
Wide material compatibility: aluminum profile, aluminum radiator, plastic steel, copper alloy, curtain wall materials
Balanced base plate, stable running without deformation during long-time aluminum cutting
Customizable outer diameter, bore size and tooth quantity to match all aluminum cutting equipment
Especificações do Produto
Solicitar OrçamentoDisponíveis vários diâmetros e números de dentes para sua máquina de corte.
| Modelo | Diâmetro Externo (mm) | Furo Interno (mm) | Espessura (mm) | Nº Dentes |
|---|---|---|---|---|
| BD-SBT0601 | 255 | 25.4 | 3.0 | 120 |
| BD-SBT0602 | 305 | 25.4 | 3.0 | 120 |
| BD-SBT0603 | 355 | 25.4 | 3.2 | 120 |
| BD-SBT0604 | 405 | 30 | 4.0 | 120 |
| BD-SBT0605 | 450 | 30 | 4.0 | 96/120 |
| BD-SBT0606 | 500 | 30 | 4.4 | 96/120 |
| BD-SBT0607 | 550 | 30 | 4.8 | 120/144 |
| BD-SBT0608 | 600 | 30 | 4.8 | 120/144 |
