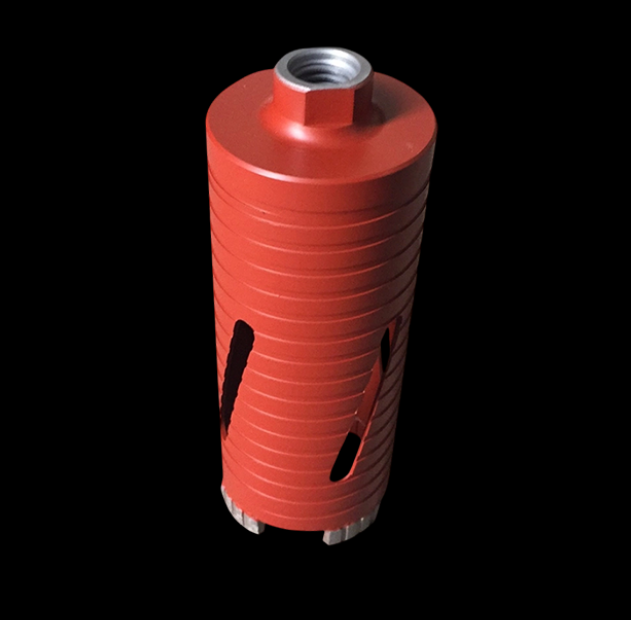

ZDA Dry Drilling Core Bits Segmented - For Reinforced Concrete
Product Features
- Segmented diamond segments, sharp cutting for dry drilling
- Grooved body with side slots for fast dust removal
- No water required, convenient for on-site dry operation
- High-strength steel body, stable drilling with low vibration
Application Scope
Dry drilling holes on reinforced concrete, abrasive concrete, brick and concrete block for wall hole opening, pipeline installation and construction renovation.
Applicable Equipment
Handheld diamond dry core drilling machines, power core drills.
Additional Features
Size range 32-182mm, M18 thread, segment height 10mm
Product Specification
GET QUOTEMultiple bore diameter and tooth count options available to match your cutting machine.
| Item NO. | Diameter (mm) | Total Length (mm) | Working Length (mm) | Thread | Segment Height (mm) | Segment NO. |
|---|---|---|---|---|---|---|
| BD-ZDA-0032 | 32 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0038 | 38 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0042 | 42 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0052 | 52 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0057 | 57 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0062 | 62 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0068 | 68 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0072 | 72 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0076 | 76 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0082 | 82 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0092 | 92 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0102 | 102 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0117 | 117 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0122 | 122 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0127 | 127 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0132 | 132 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0152 | 152 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0162 | 162 | 180 | 150 | M18 | 10 | - |
| BD-ZDA-0182 | 182 | 180 | 150 | M18 | 10 | - |
