LST Laser Segmented TURBO diamond saw blade for concrete brick cutting
‹ Prev / Next ›

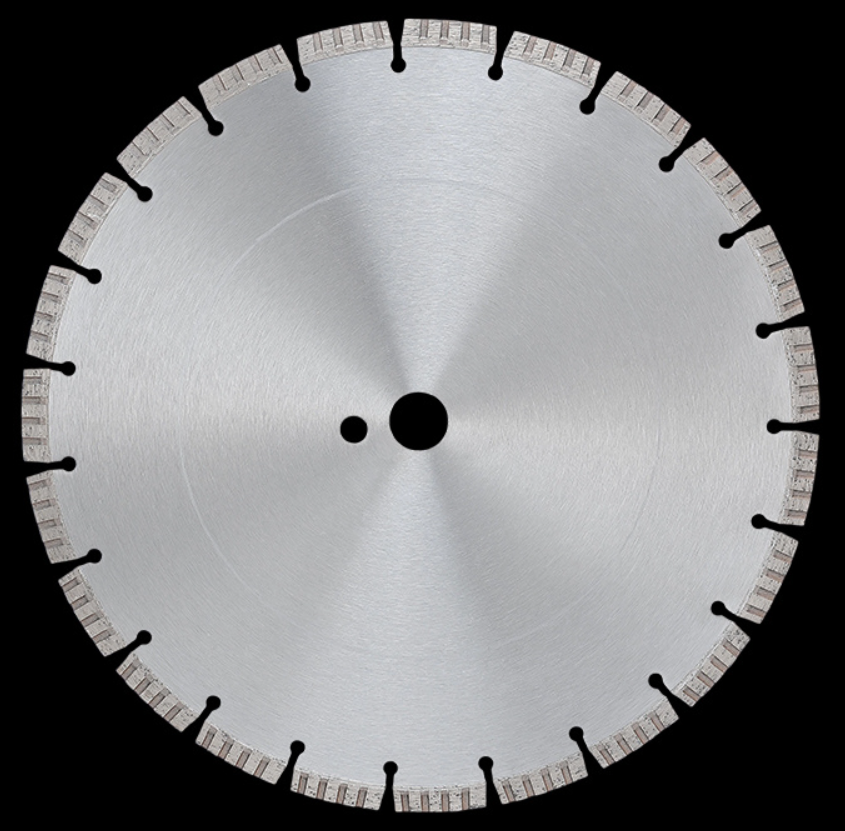

LST Laser Segmented TURBO - For General Purpose Cutting

Product Features

  1. Laser welded turbo segmented design delivers fast, smooth cutting.
  2. 10mm diamond segment height, supports both dry and wet cutting.
  3. Versatile for multiple building materials, fits angle grinders & masonry saws.

Application Scope

  1. Cut concrete, common bricks, concrete blocks, roof tiles, clay paving bricks and other general building materials.
  2. Suitable for building renovation, road repair, masonry processing.

Applicable Equipment

Angle grinder, masonry saw, circular cut‑off machine, stone cutting machine.

Product Overview

  1. Precision laser welding firmly bonds turbo diamond segments to the steel core, far stronger than conventional brazed blades, prevents segment detachment under heavy dry/wet cutting conditions.
  2. Turbo segmented wave profile accelerates chip removal and air circulation, runs cooler and cuts faster than standard segmented blades, reduces heat accumulation during continuous operation.
  3. Optimized diamond matrix formula delivers balanced sharpness and wear resistance, suitable for multi-material general cutting, maintains stable cutting performance for long working hours.

Additional Features

  1. Blade diameter by job size: BD-LST-0115 to BD-LST-0180 (115-180mm) for angle grinders on tile, brick and thin masonry; BD-LST-0230/0300 (230-300mm) for hand-held and walk-behind saws on general concrete and block; BD-LST-0350/0400 (350-400mm) for road and floor saws on concrete slabs.
  2. Turbo segment advantage: the continuous turbo edge cuts smoother than standard wide segmented blades, leaving a cleaner surface that reduces secondary grinding; the thin turbo gullet also clears chips and heat faster during general-purpose cutting.
  3. Arbor matching: 22.23mm bore on 115-230mm blades fits angle grinders and hand-held cut-off saws; 20mm bore on the 300mm model and 25.4mm bore on 350-400mm models match masonry and road saws without reducer rings.
  4. Cutting result: laser-welded turbo segments stay secure under both dry and wet cutting; suited for renovation, road repair and masonry work where a smooth cut edge matters as much as cutting speed.

Product Specification

GET QUOTE

Multiple bore diameter and tooth count options available to match your cutting machine.

Specifications of Saw Blade and Tools
Item NO. Diameter (mm) Arbor Bore (mm) Segment width (mm) Segment Height (mm)
BD-LST-0115 115mm 22.23 2.1 10
BD-LST-0125 125mm 22.23 2.2 10
BD-LST-0150 150mm 22.23 2.2 10
BD-LST-0180 180mm 22.23 2.4 10
BD-LST-0230 230mm 22.23 2.4 10
BD-LST-0300 300mm 20 3.2 10
BD-LST-0350 350mm 25.4 3.2 10
BD-LST-0400 400mm 25.4 3.2 10
